• Quality | DT Swiss GRC 50 rims
  • Low power consumption
    Technology | Hooked & Aero
  • Best for | Speed
See all specs
You decide the limit. Discover how far you can go. The GRAVAA x DT Swiss GRC will help you get there. David, Migration Gravel Race finisher, team GRAVAA

Gravel racing redefined with GRAVAA precision

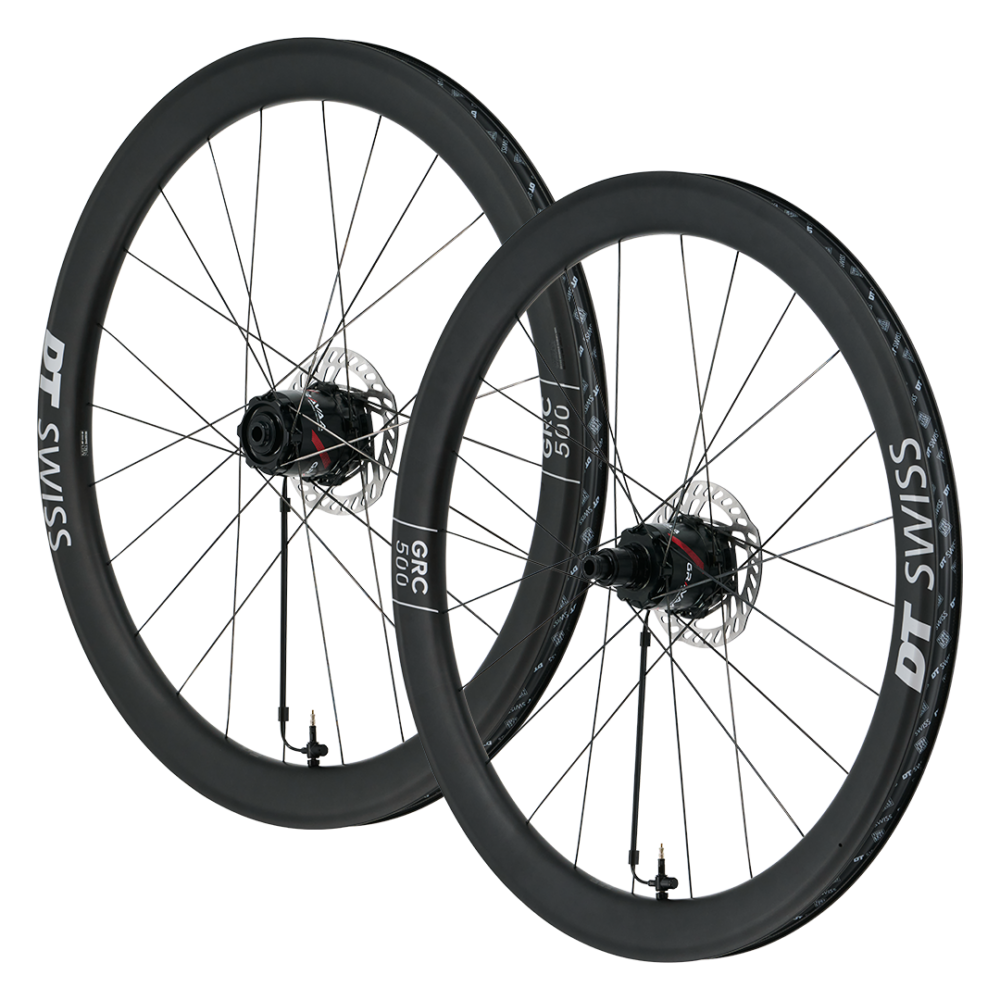

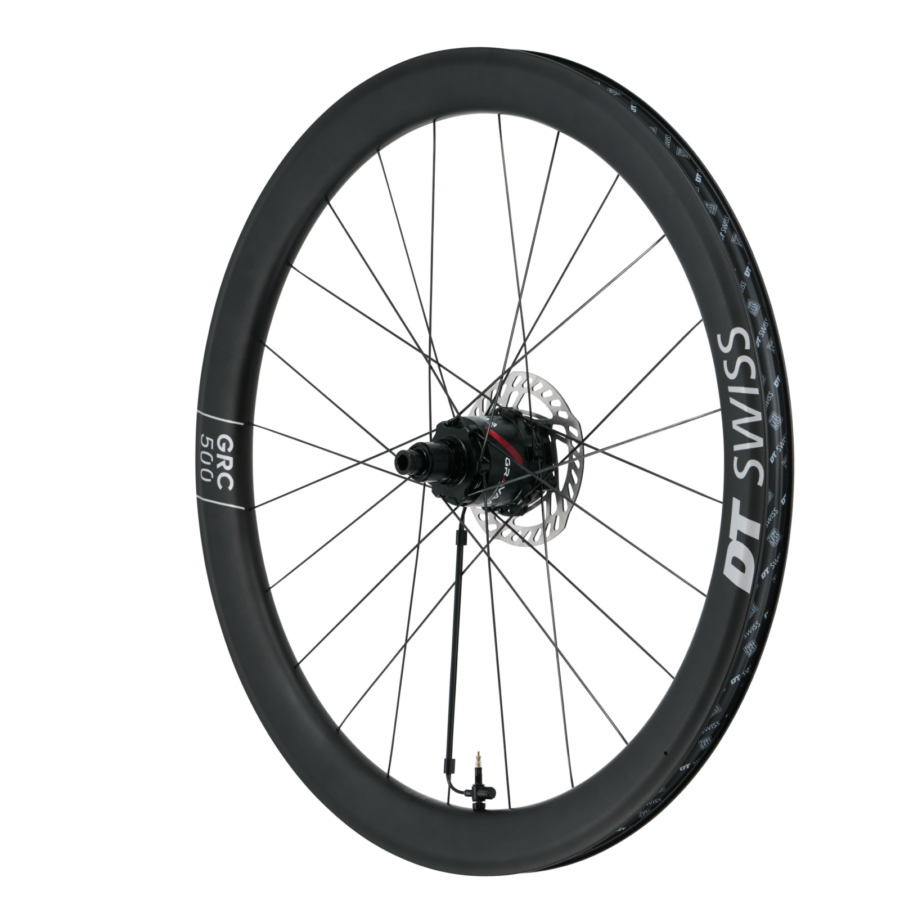

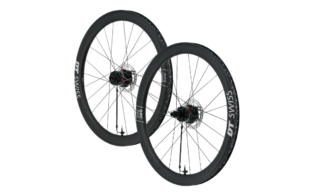

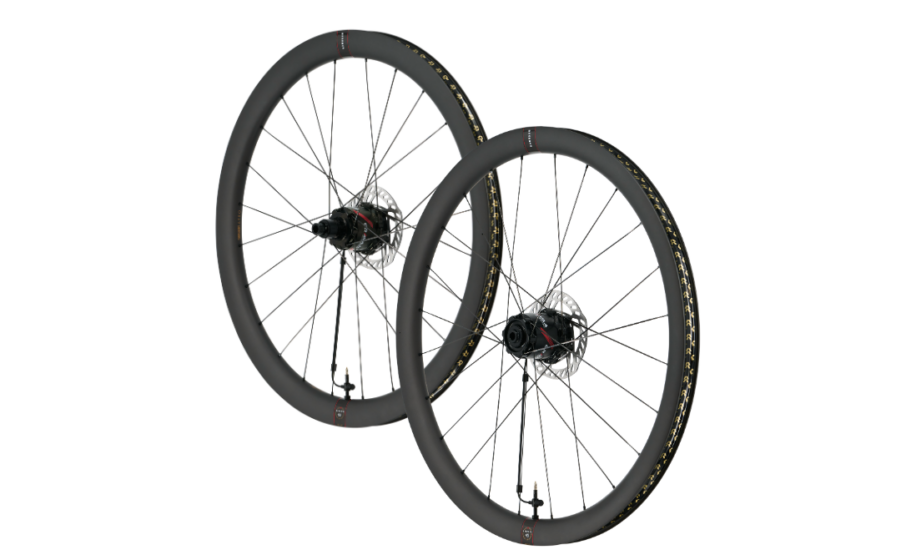

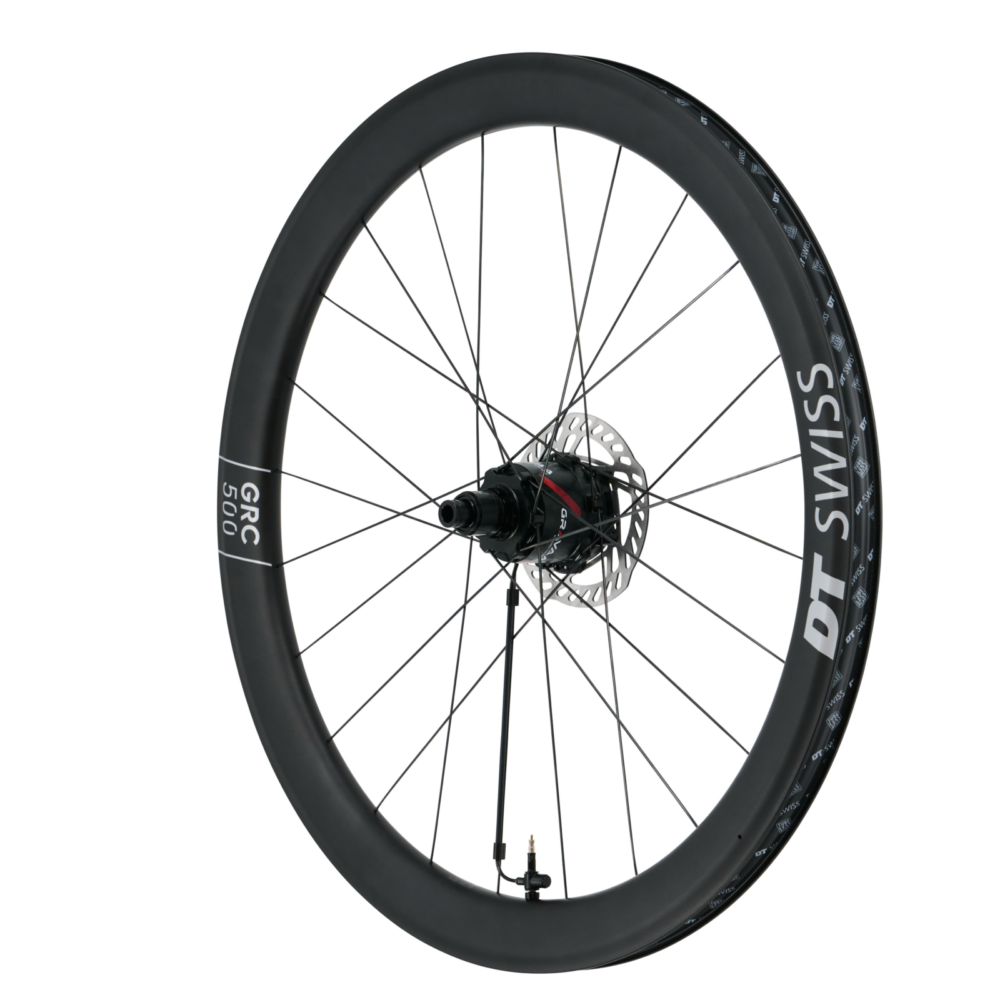

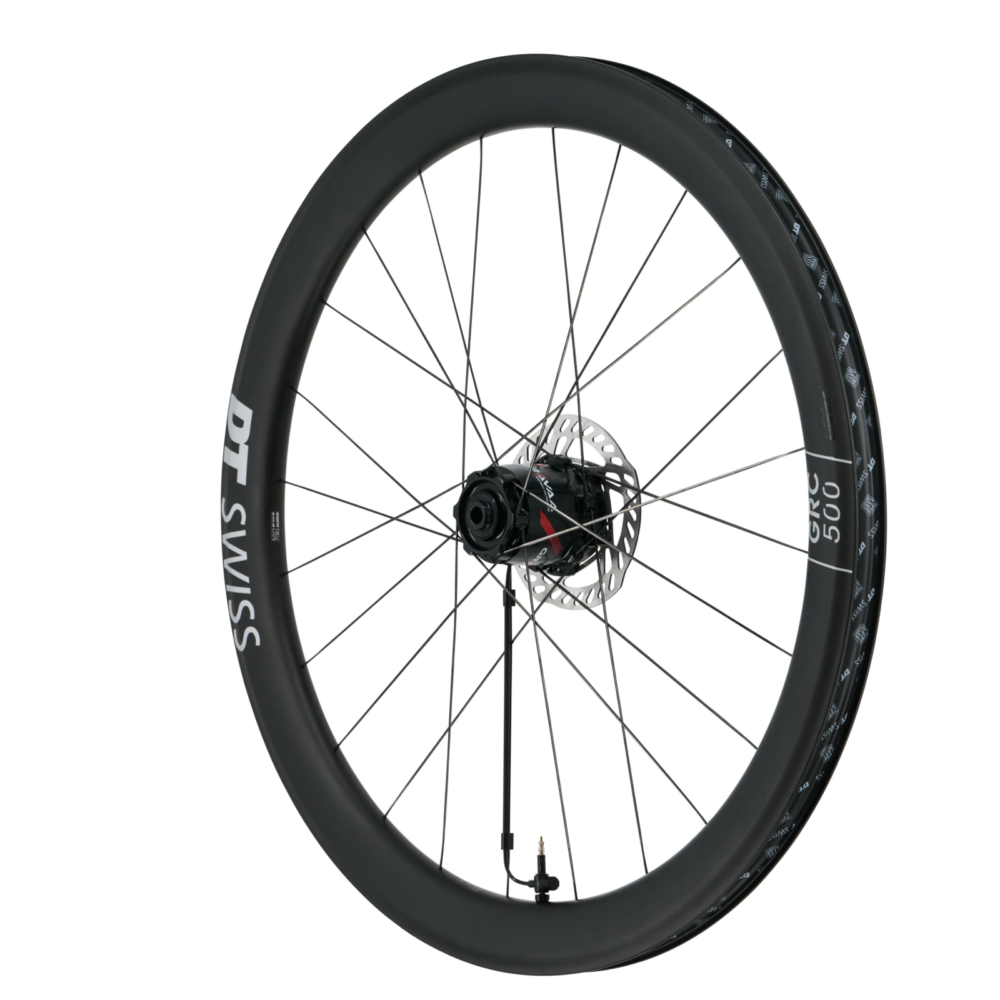

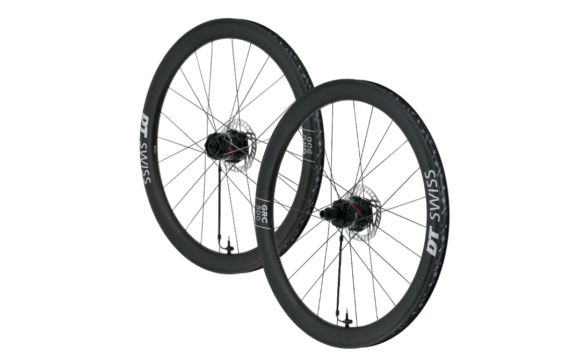

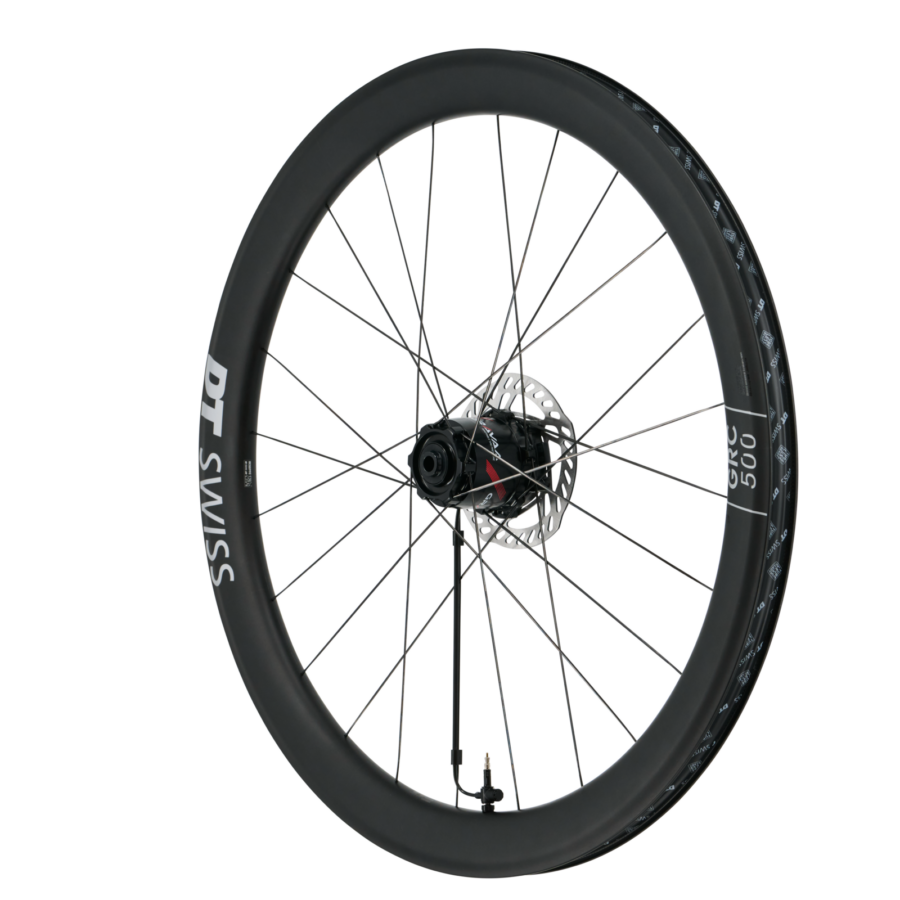

The Gravaa x DT Swiss GRC 500 wheelset takes gravel racing to the next level by combining DT Swiss’ renowned GRC 500 rims with Gravaa’s cutting-edge Kinetic Air Pressure System (KAPS). Designed with a unique rim shape for the lowest aerodynamic drag, this wheelset sets a new benchmark in gravel performance, making it dangerously fast on any terrain.

With Gravaa’s KAPS technology, riders can adapt tire pressure in real-time, optimizing grip, control, and speed as conditions change. The wide rim profile accommodates high-volume tires, ensuring maximum traction and comfort while maintaining aerodynamic efficiency. Perfect for both rough gravel trails and fast racing segments, these wheels offer the ultimate combination of robustness and high-speed performance.

Paired with Gravaa’s tire pressure innovation, the GRC 500 wheelset is built to help you conquer gravel races with confidence and precision, no matter the terrain. For serious racers looking to push the limits, this collaboration is the ultimate off-road weapon.

Key Features:

  • DT Swiss GRC 500 Rims: Aerodynamically optimized for gravel, offering efficiency and speed.
  • Gravaa Adaptable Tire Pressure System: Gravaa’s KAPS technology allows real-time adjustments for optimal traction and control.
  • Robust Carbon Construction: Designed to withstand rugged terrains without compromising weight.

Contents:

  • Gravaa x DT Swiss GRC500 wheelset (front and rear)
  • Integrated hub with adaptable tire pressure technology (mounted)
  • Disc brake rotors of your choice (mounted)
  • DT Swiss Freehub body of your choice (mounted)
  • Wireless control unit including two shift buttons
Unstoppable, at every terrain. Your heart pounds, your lungs burn, and you keep pushing forward. For yourself or for the podium, with the GRAVAA x DT Swiss gravel wheelset you will Ride Better. Loek, Unbound, Rift, Migration finisher
01 04

Perfect pressure on every terrain

Whether you’re tackling rough gravel or smooth tarmac, Gravaa’s technology allows you to adjust your tire pressure on the fly, offering both comfort and control no matter where the ride takes you.

Comfort at your fingertips

The ergonomic Gravaa shifter buttons are intuitively placed on your handlebars, allowing personalized tire pressure adjustments without disrupting your focus. Whether climbing or descending, control is always within easy reach.

  • Specifications

    GRAVAA x DT SWISS GRC500 Wheelset GRAVAA x DT Swiss
    Ideal for Bike touring, Gravel racing
    Wheel size 700c (29''/622mm)
    Brake type Disc brake only (GRAVAA 5-bolt rotors)
    Weight 2164 g
    Rim type Hooked, TLR
    Rim materials Carbon
    Rim height 50 mm
    Rim inner width 24 mm
    Offset rear
    Tire types Clincher - Tubeless ready
    Tubeless ready No, Gravaa's tubeless solution is in development and will be available as add-on part soon
    Hub type Non-boost (100 mm front, 142 mm rear)
    Max. system weight 110 kg (rider + bike)
    ANT+ TPMS
    Bluetooth
    Disc brake rotor front 140 mm disc, 160 mm disc
    Disc brake rotor rear 140 mm disc, 160 mm disc
    Number of spokes 24
    Spoke types DT Swiss Aerocomp Spoke Straight Pull, DT Swiss Aerolite Spoke Straight Pull
    Spoke nipple type DT Swiss Pro Lock 2.0 mm (aluminium, hidden nipples)
    Freehub system DT Swiss Ratchet System (36 teeth)
    Freehub body Shimano Road (HG), SRAM XD, SRAM XDR, Campagnolo N3W, Shimano Microspline
    Wireless shifter GRAVAA sprint shifter (included)
    Ingress protection class IP55
    GRAVAA x DT SWISS GRC500 Wheelset GRAVAA x DT Swiss
    Tire inflation While riding
    Tire deflation During standstill, While riding
    Accuracy tire pressure control +/-50 mbar
    Tire pressure range Between 2.0 and 7 bar
    Average inflation rate 1300 mbar/km (for 700x30c tire, 30-622)
    Average deflation rate >200 mbar/s
    Inflation rate related to riding speed?
    Deflation rate related to riding speed?
    Average power consumption during inflation 2 - 4.5 W at 25 km/h, between 1 and 6 bar (per wheel)
    Average power consumption during deflation 0 W
    Operating temperature (active pressure control) 0° to 50°C
    GRAVAA app (for tire pressure settings) Android, iOS
