Omschrijving
-
Eigenschappen
Eigenschappen
ANT+ Yes
Bluetooth Yes
Freehub system DT Swiss Ratchet System (36 teeth)
Front axle 100 x 12 mm axle
Ideal for Gravel riding, Competition road racing
Rear axle 142 x 12mm axle
Tubeless ready Yes
Tubular version No
Tyre types Clincher – Tubeless ready
Wheel size 29"(622), 700c
Rim materials Carbon
Average power consumption during inflation 2 – 4.5 W at 25 km/h, between 1 and 6 bar (per wheel)
Average inflation rate 1.3 bar/km
Tyre used for specs 700x30c tyre (30-622)
Inflation on the fly While riding
Deflation on the fly During standstill, While riding
Average deflation rate >200 mbar/s
Inflation rate related to riding speed? Yes
Deflation rate related to riding speed? No
Average power consumption during deflation 0 W
Weight 1970 g
Rim type Carbon, TLR
Rim height 40 | 44 mm
Rim inner width 25.5 | 25 mm
Brake type Disc brake only
Spoke offset 0 mm
Freehub body SRAM XDR, Campagnolo N3W, Shimano Microspline
Disc brake rotor front 140 mm disc, 160 mm disc, 180 mm disc
Disc brake rotor rear 140mm disc, 160mm disc, 180 mm disc
Hub type Non-boost (100 mm front, 142 mm rear)
Max. system weight 110 kg (rider + bike)
Number of spokes 28
Spoke nipple type DT Swiss Pro Lock 2.0 mm (aluminum)
Spoke type DT Swiss Aerolite / Aero Comp
Tyre pressure operating range 2.0 – 7.0 bar
Safety valve (color) red (5.5 bar)
- Optimize tyre pressure to surface, up to 1.6 bar per km
- Beneficial on any route, most on gravel
- Human powered pump, with 40hrs of wireless connectivity
These are the most buttery-smooth and pleasant carbon wheels we tested and are an ideal choice for racking up big miles on any road, from minty fresh tarmac to aged and weathered pavement, even dirt and hardpack gravel.
The result of a joint mission to excellence

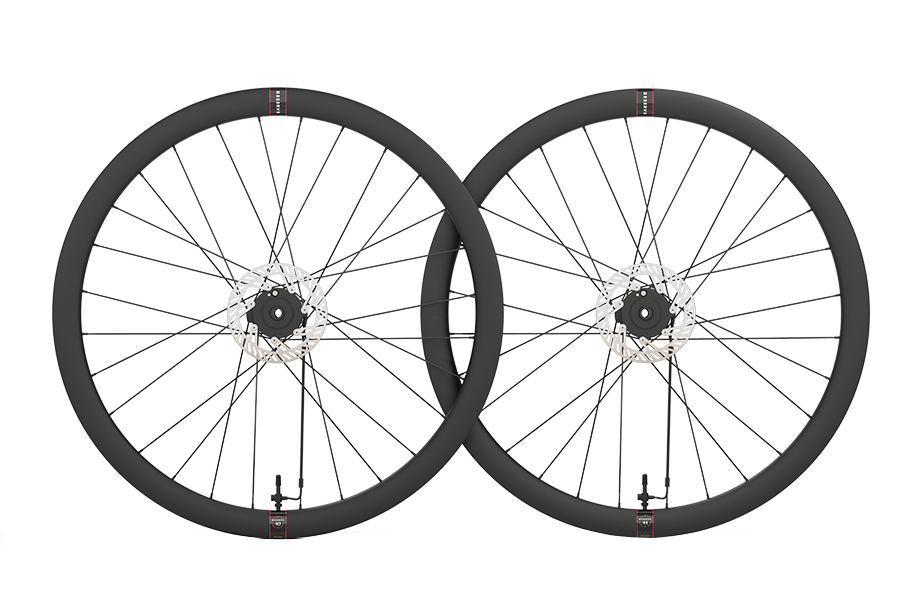

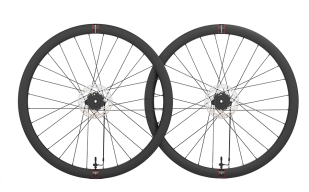

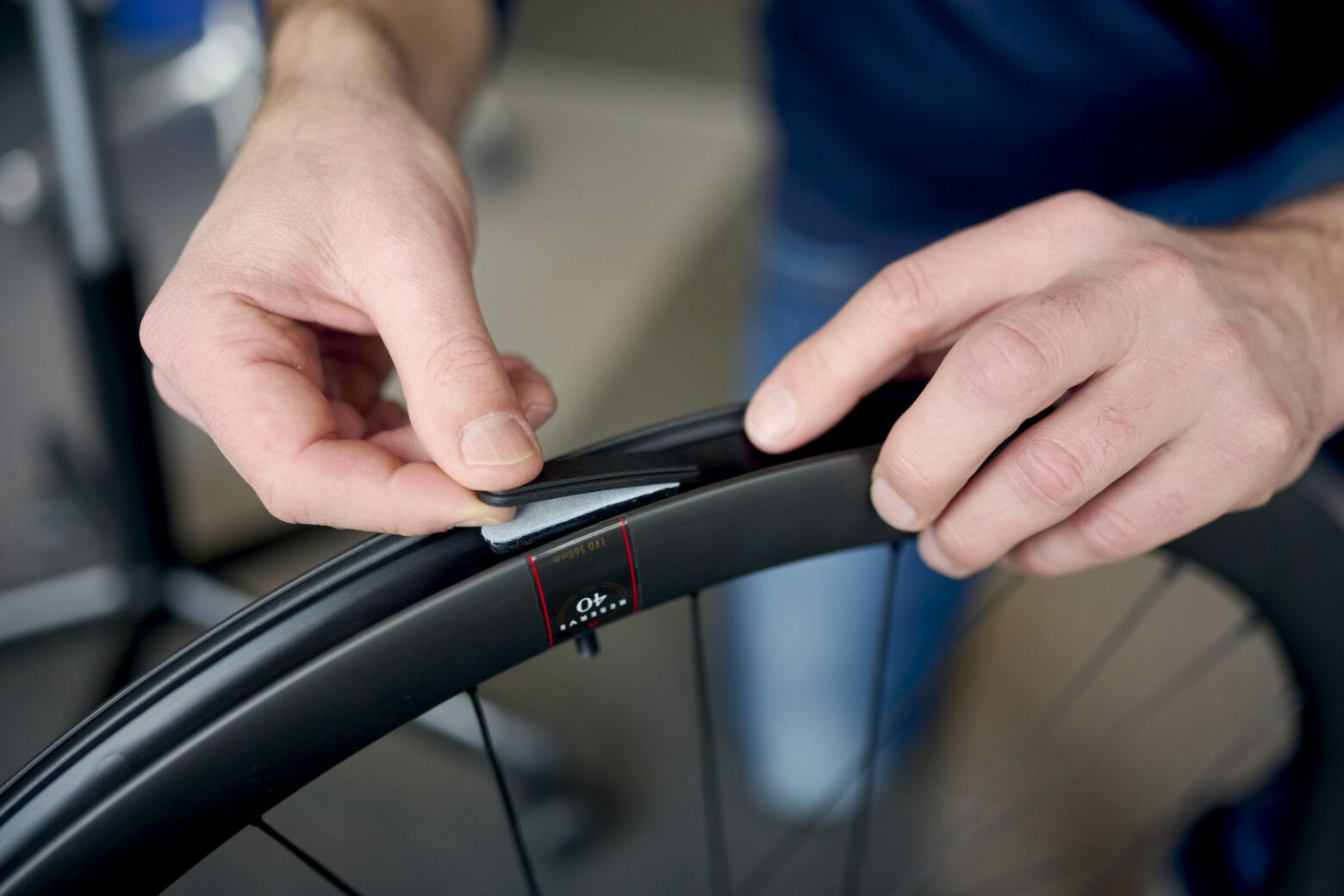

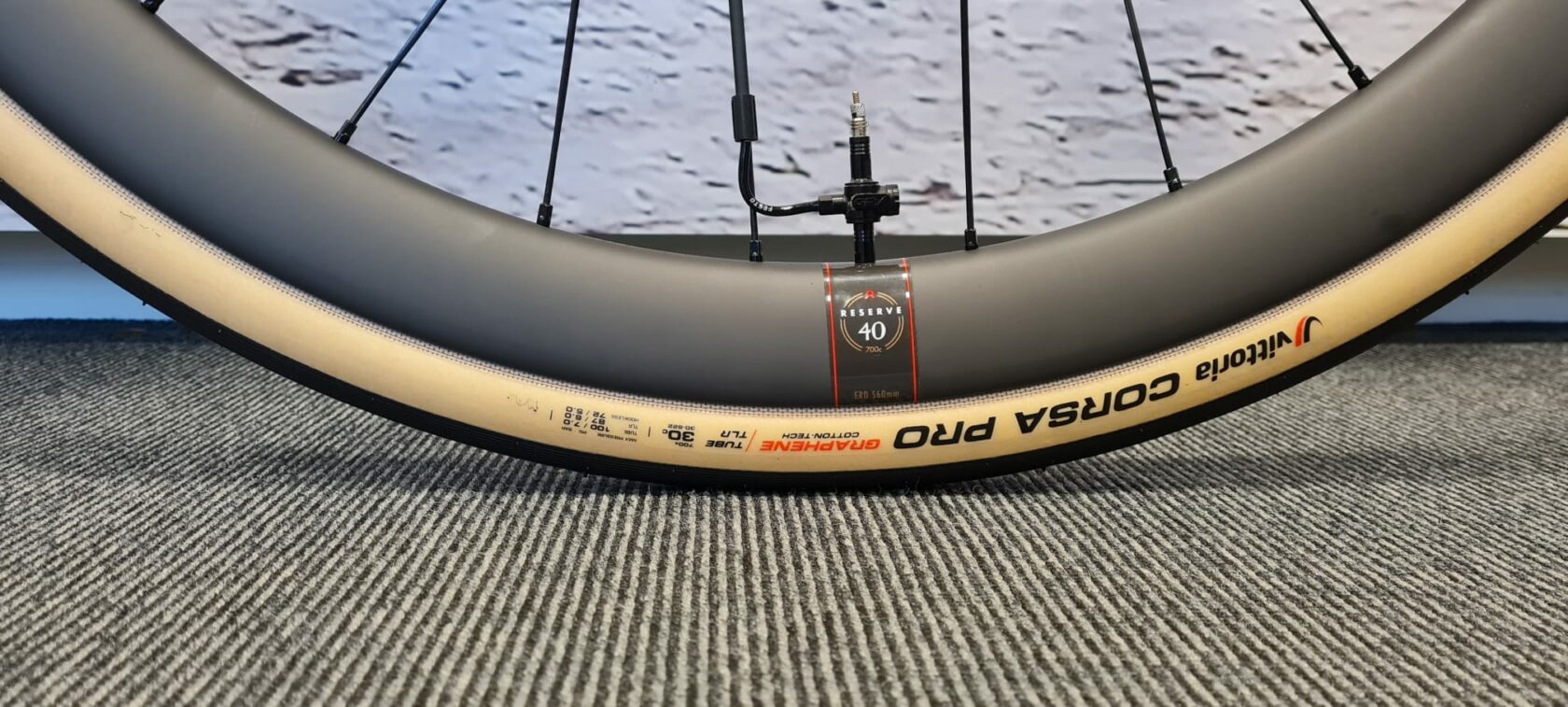

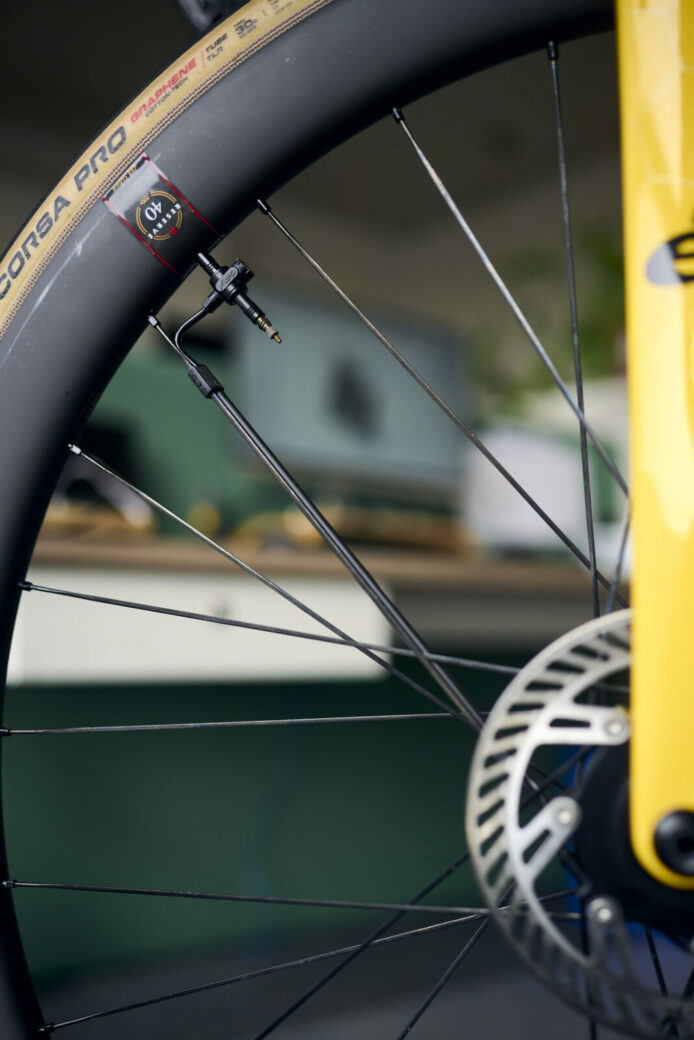

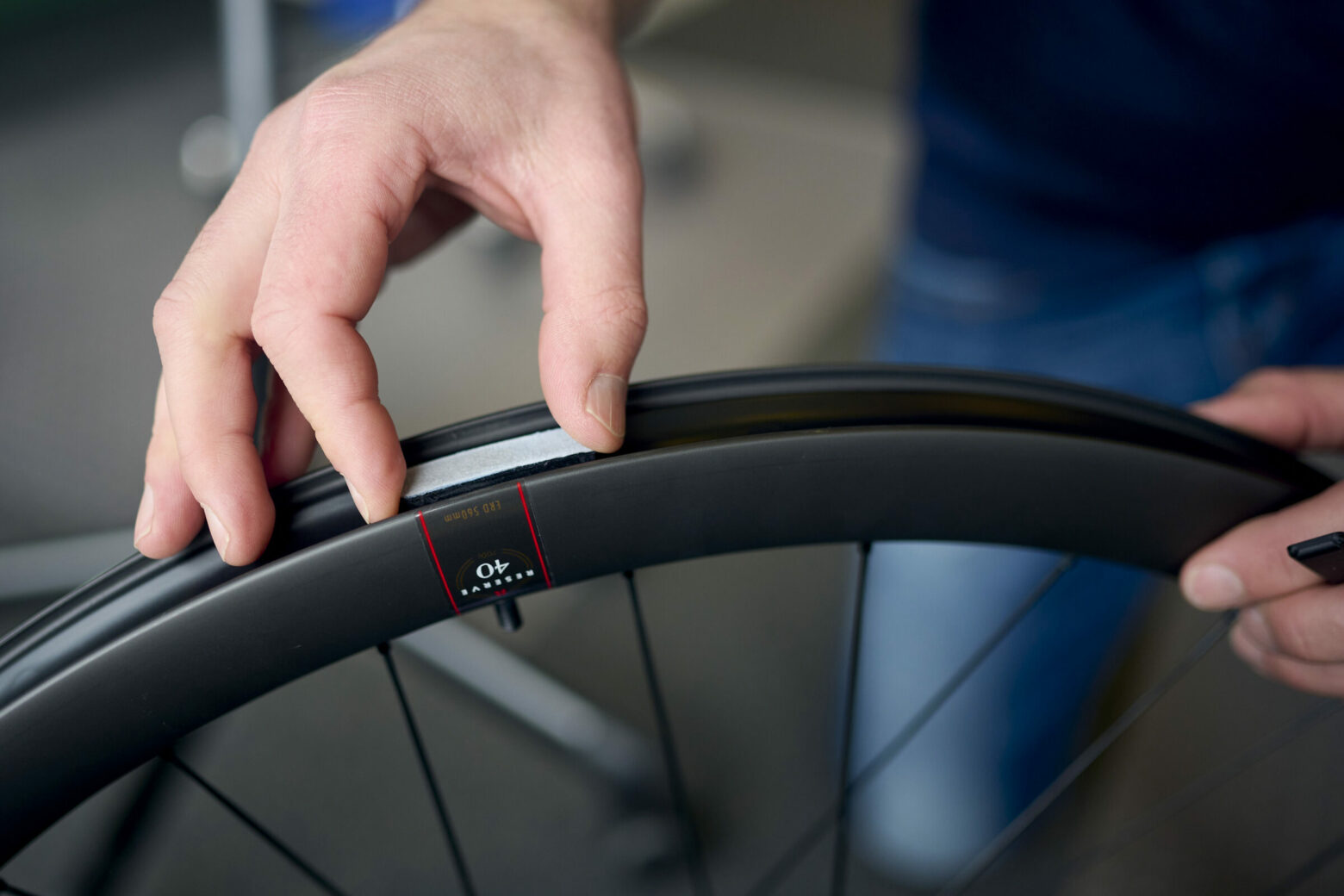

Reserve Wheels partnered with GRAVAA and DT Swiss to make their ‘Best All-Around Carbon Road Bike Wheels’ even better. Combining Reserve 40|44 rims with GRAVAA’s KAPS technology and DT Swiss’ hub parts made this set faster on every terrain. The 25.5 | 25 mm inner width aero rims allow the use of various tyre widths.

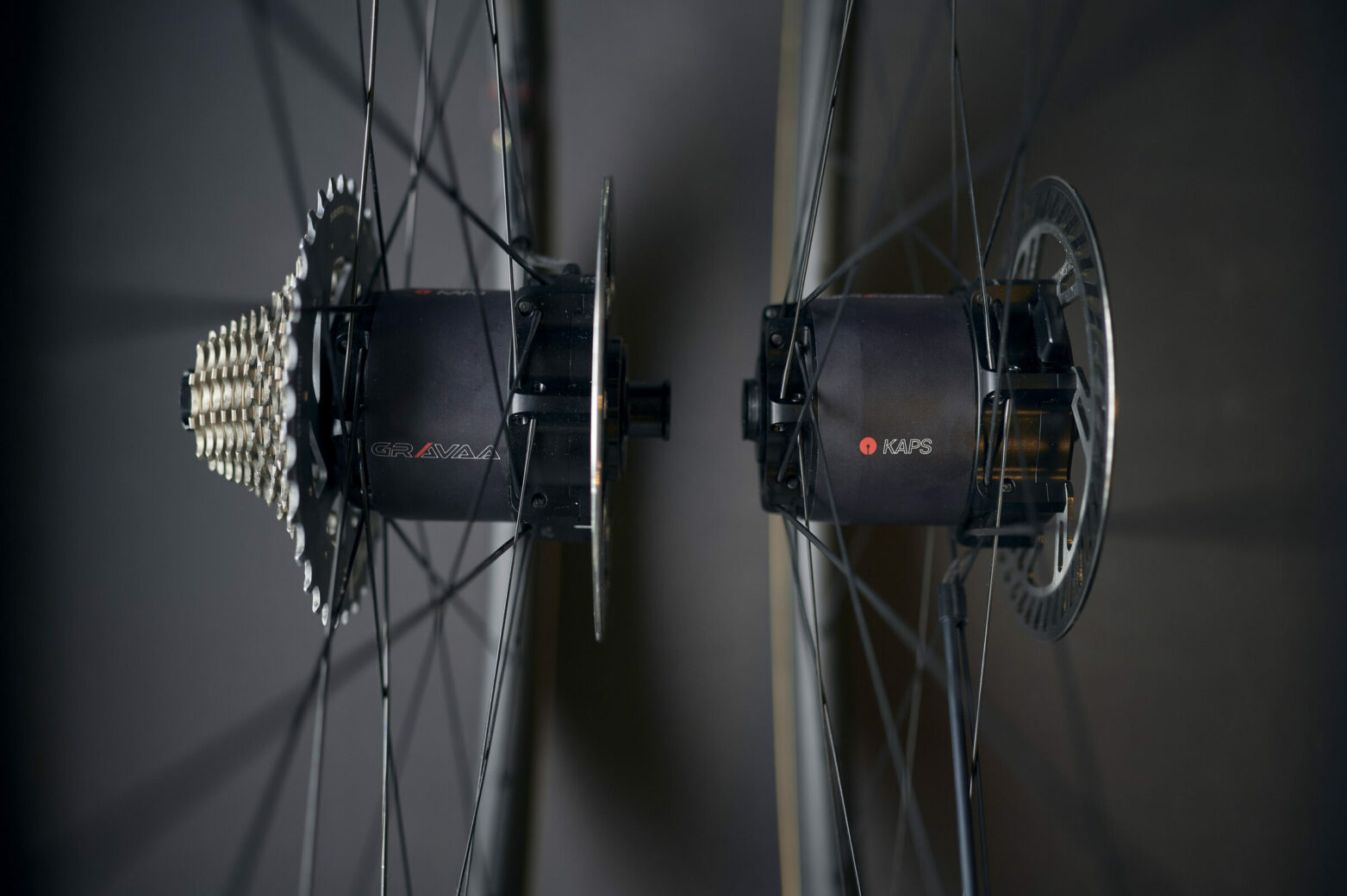

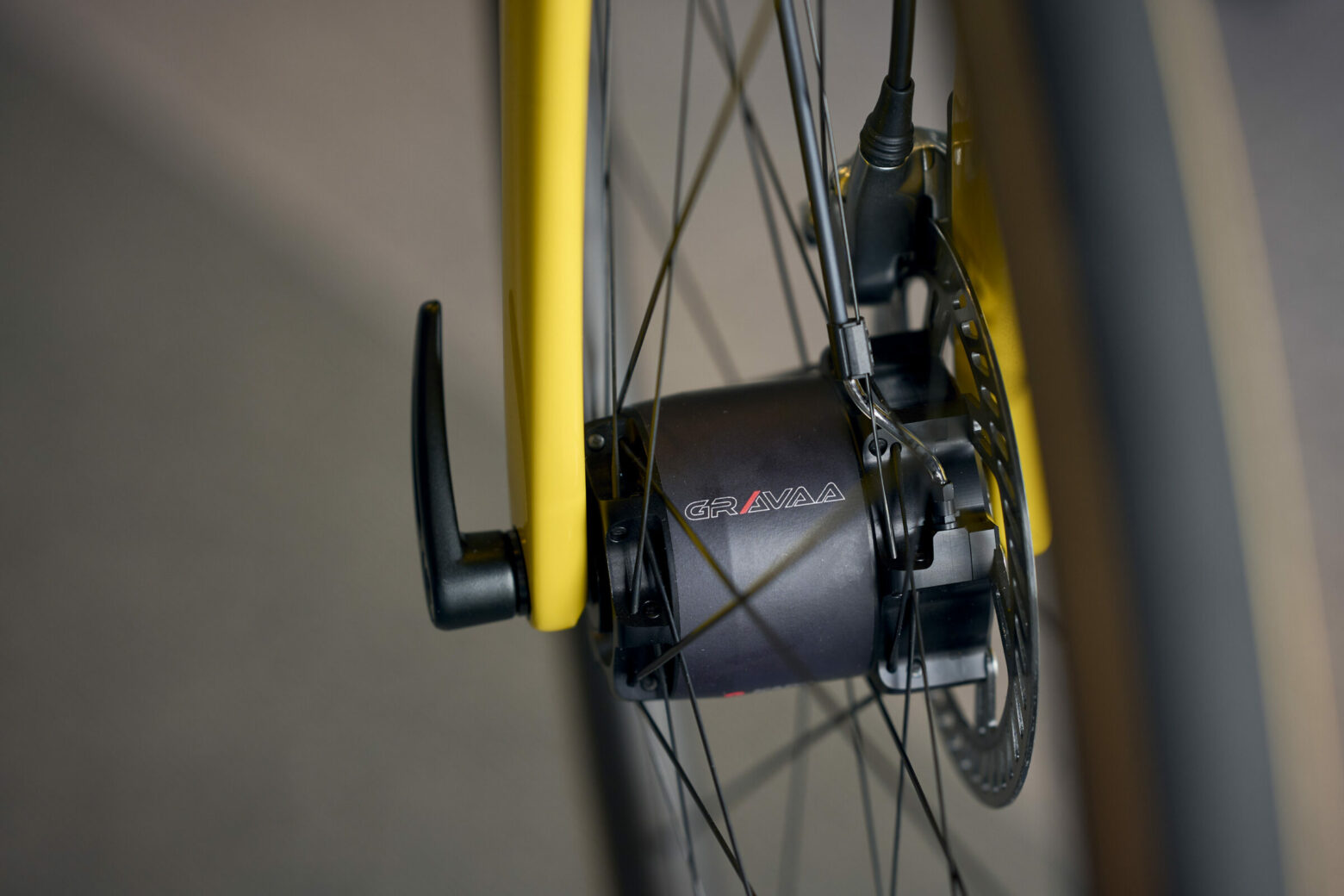

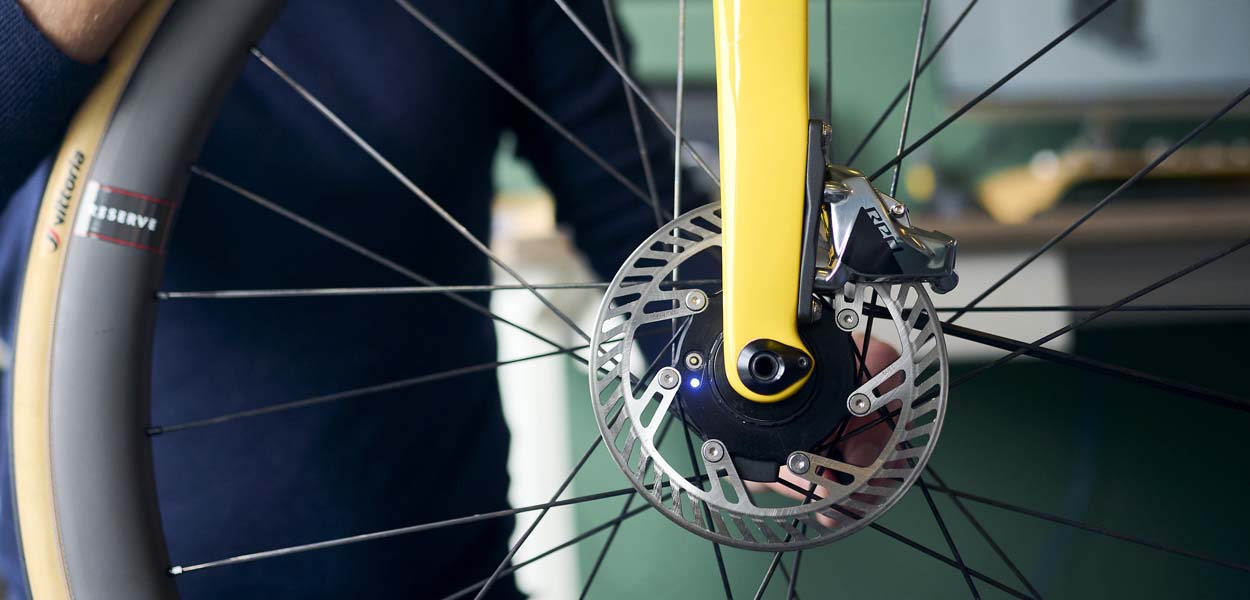

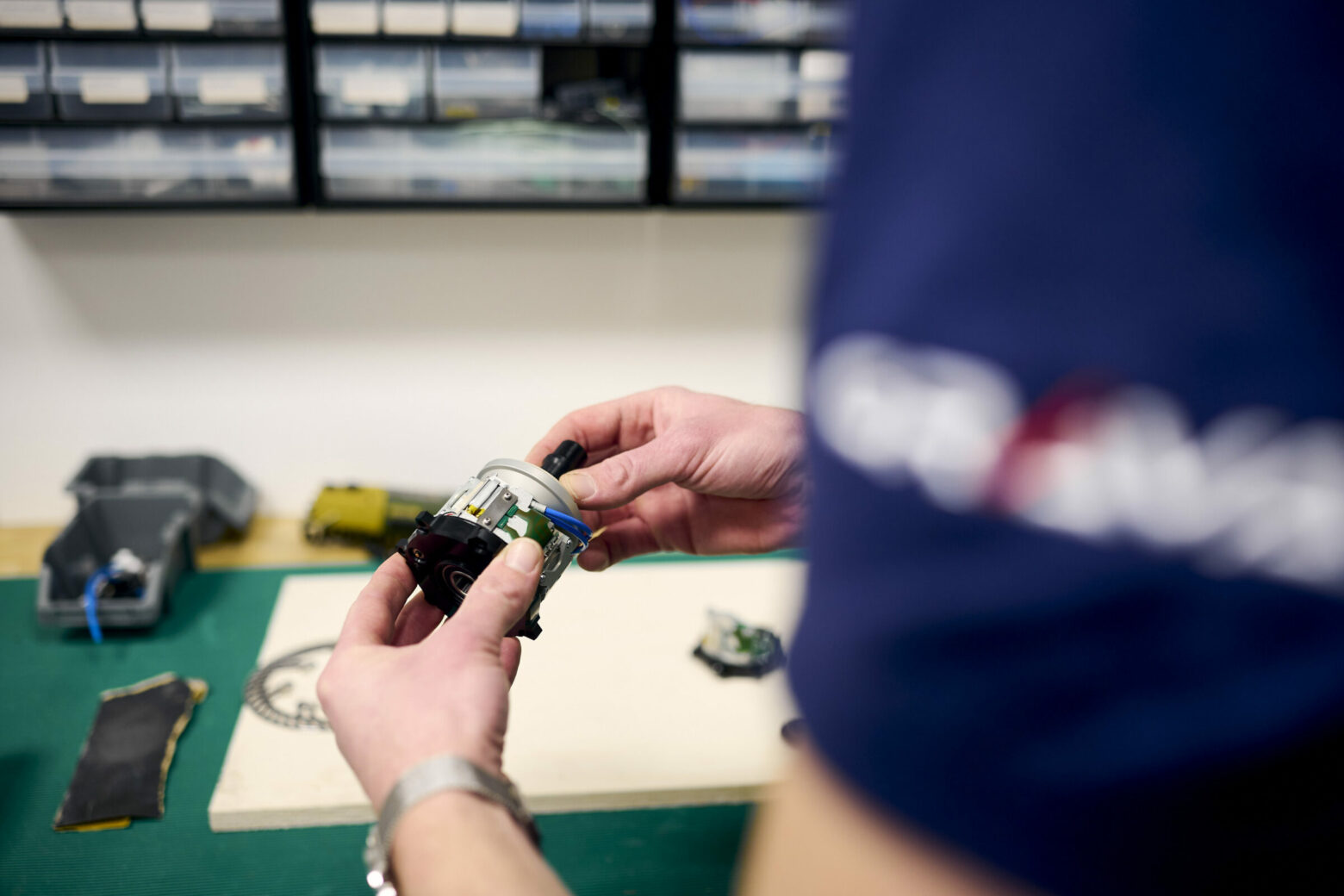

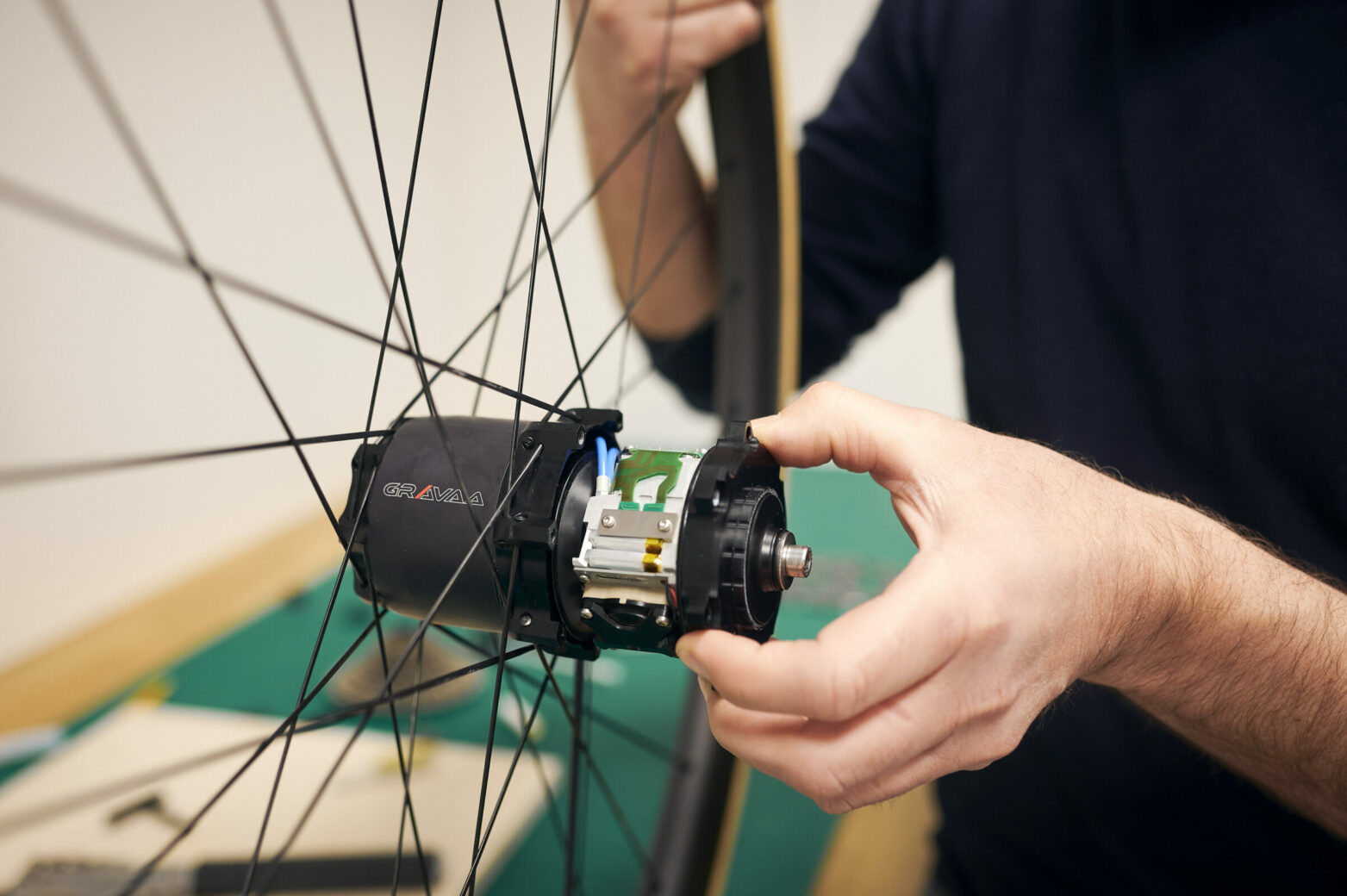

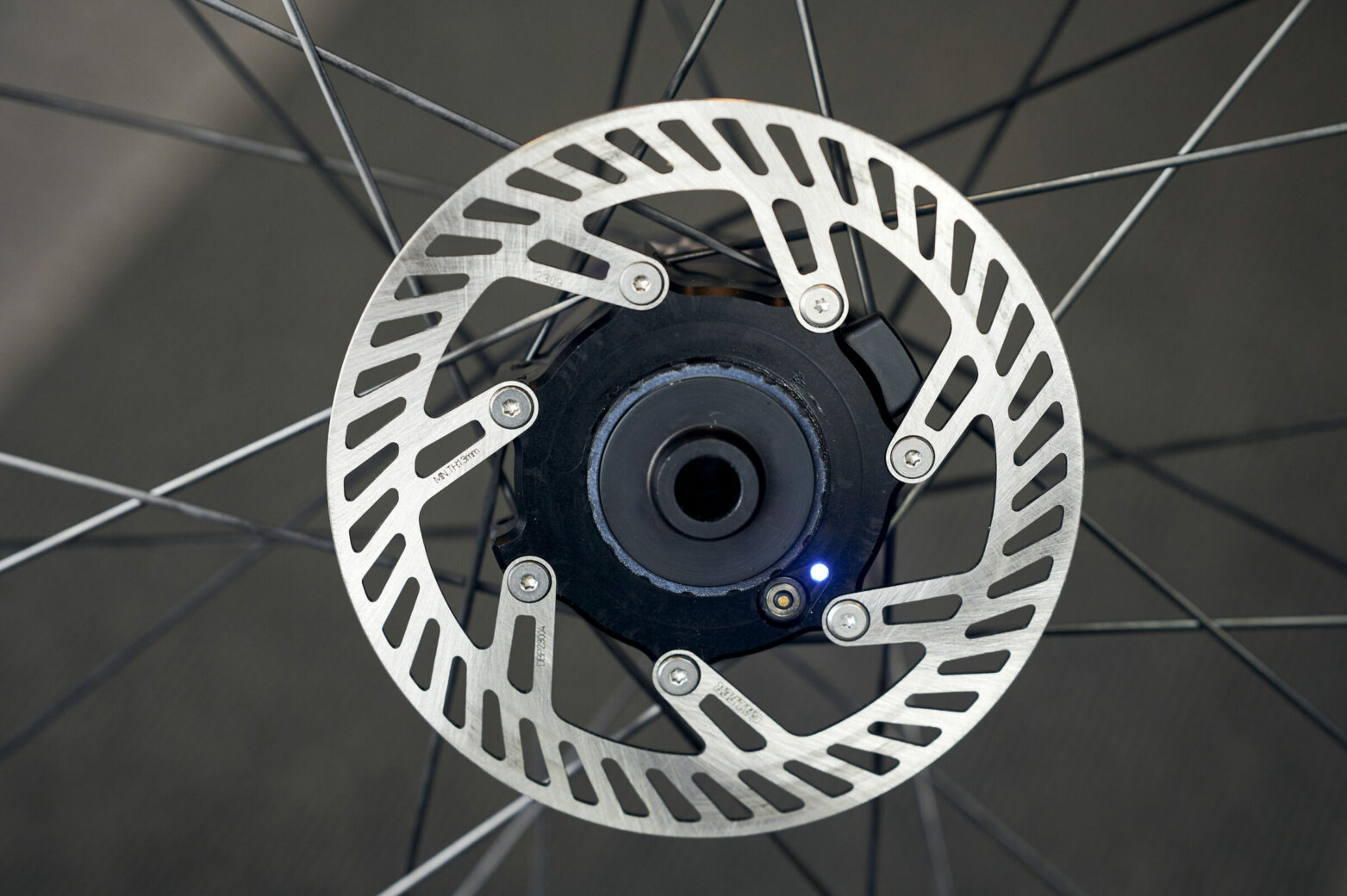

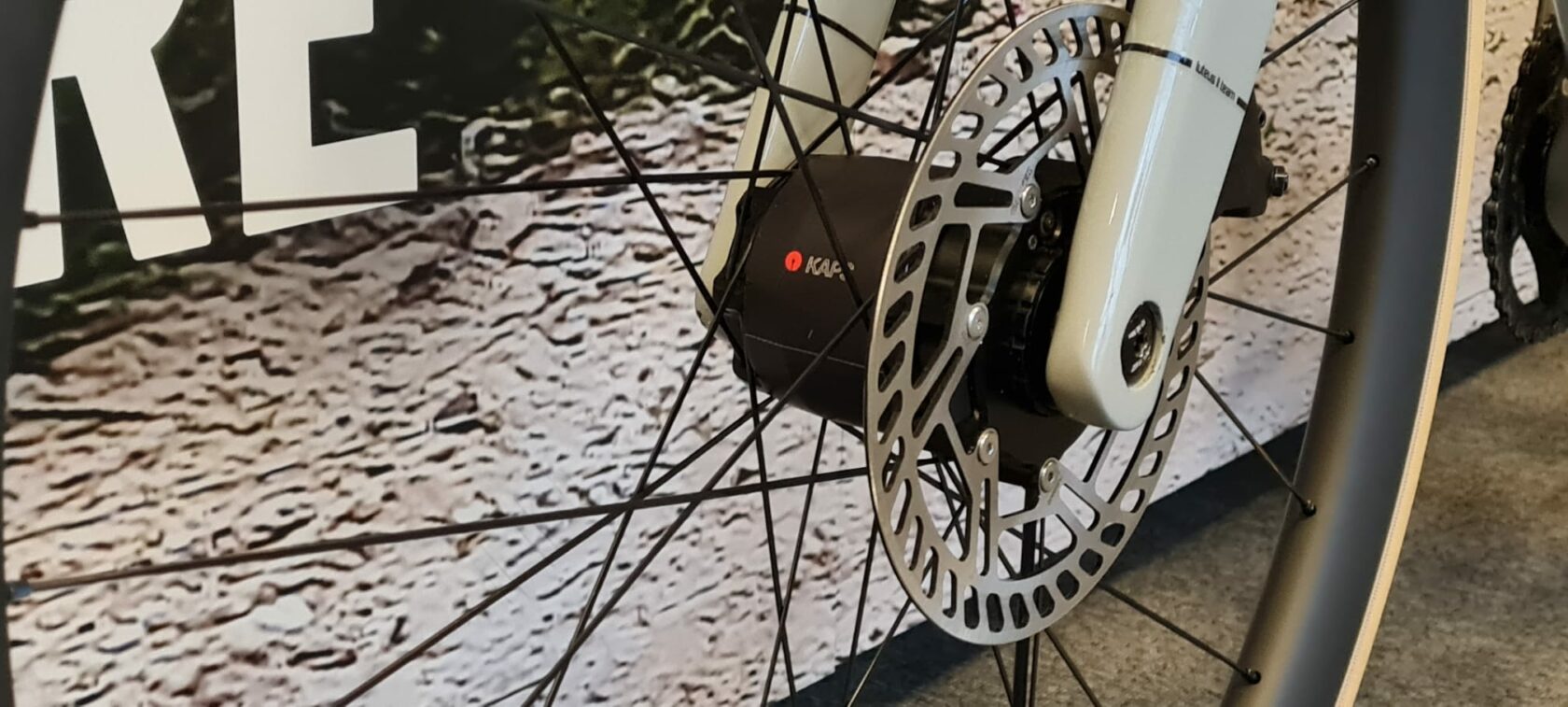

All wheels with KAPS come with an advanced hub housing our patented high-pressure pump. You power your wheels, your wheels’ rotation drive the pump. The pump activates on demand. our when our innovative clutch and electro-pneumatic system registers a puncture.
- All wheels with KAPS are fully compatible with standard bikes with disc brakes.
- Manage your tyre pressure from your handlebars or via the app.
- Read tyre pressure on your Garmin or Wahoo bike computer .
-
Specifications

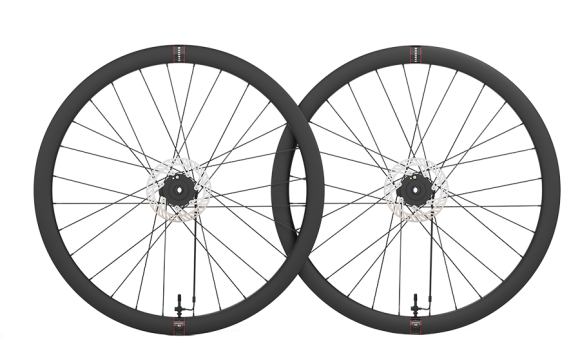

GRAVAA R-40|44 All-road aero comfort Ideal for Gravel riding, Competition road racing Wheel size 29"(622), 700c Brake type Disc brake only Weight 1970 g Rim type Carbon, TLR Rim materials Carbon Rim height 40 | 44 mm Rim inner width 25.5 | 25 mm Tyre types Clincher - Tubeless ready Tubeless ready Tubular version Hub type Non-boost (100 mm front, 142 mm rear) Max. system weight 110 kg (rider + bike) ANT+ Bluetooth Disc brake rotor front 140 mm disc, 160 mm disc, 180 mm disc Disc brake rotor rear 140mm disc, 160mm disc, 180 mm disc Number of spokes 28 Spoke offset 0 mm Spoke type DT Swiss Aerolite / Aero Comp Spoke nipple type DT Swiss Pro Lock 2.0 mm (aluminum) Freehub system DT Swiss Ratchet System (36 teeth) Freehub body SRAM XDR, Campagnolo N3W, Shimano Microspline GRAVAA R-40|44 All-road aero comfort Tyre used for specs 700x30c tyre (30-622) Inflation on the fly While riding Deflation on the fly During standstill, While riding Tyre pressure operating range 2.0 - 7.0 bar Average inflation rate 1.3 bar/km Average deflation rate >200 mbar/s Inflation rate related to riding speed? Deflation rate related to riding speed? Average power consumption during inflation 2 - 4.5 W at 25 km/h, between 1 and 6 bar (per wheel) Average power consumption during deflation 0 W
Gravaa enables you to control tyre pressure on the fly
After years of developing, prototyping and testing we are hitting the markets with our revolutionary carbon wheelsets. Want to know more? Read more about our technology here.
